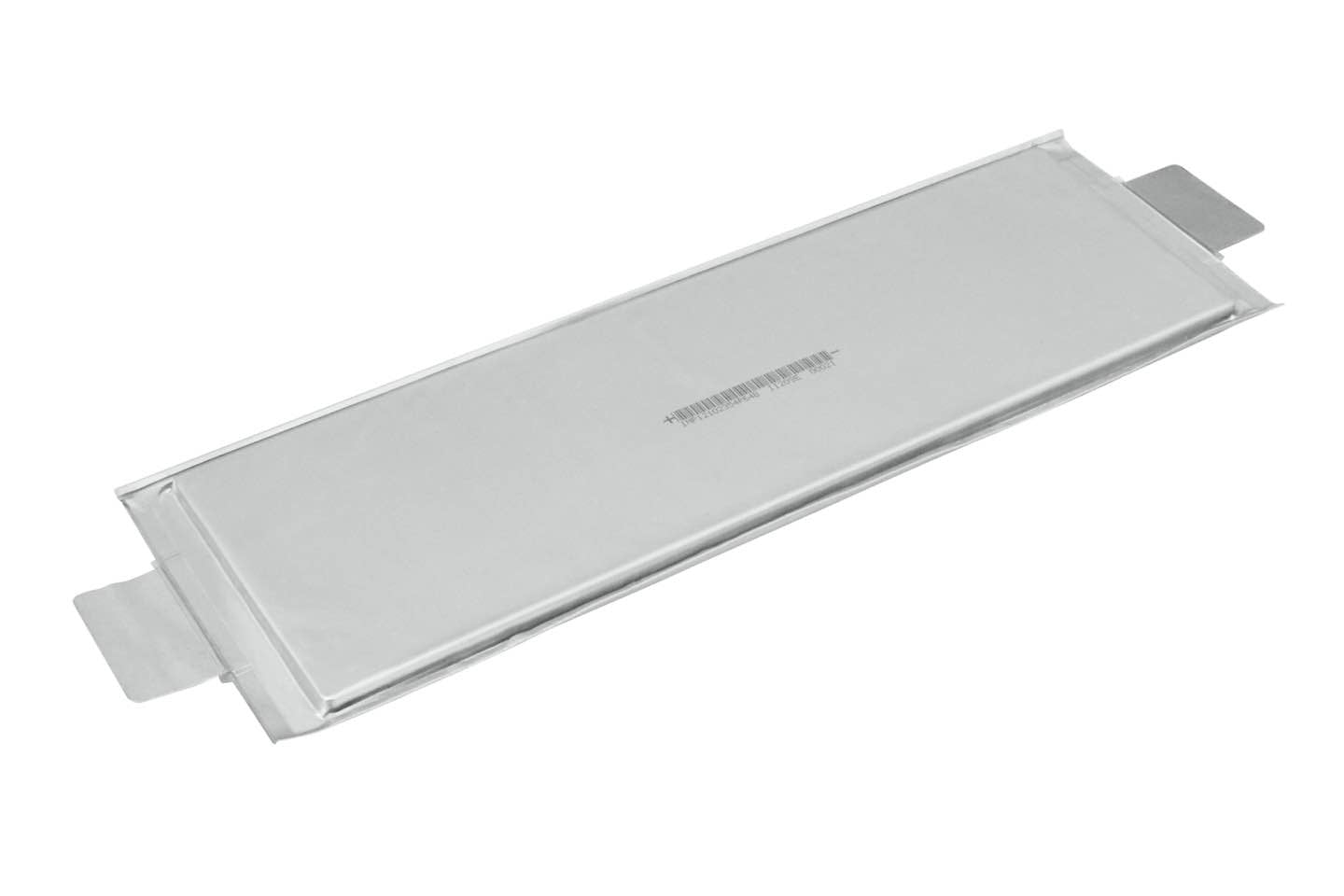

Pouch NCM Lithium Battery

High Energy Density: Superior NCM (Nickel Cobalt Manganese) chemistry provides exceptional energy density, delivering more power in a compact form factor.
Double Tab Design: Innovative double ends tab configuration enables faster charging/discharging rates and improved current distribution.
Extended Cycle Life: Engineered for longevity with 1000+ charge cycles while maintaining over 80% capacity retention.
Enhanced Safety Features: Multiple protection mechanisms including overcharge protection, short circuit prevention, and thermal management systems.
Flexible Form Factor: Pouch cell design allows for customizable dimensions to fit various application requirements.
Low Self-Discharge Rate: Maintains charge integrity during storage periods with minimal capacity loss.
Wide Operating Temperature Range: Performs reliably from -20°C to 60°C, suitable for diverse environmental conditions.
Lightweight Construction: Optimized weight-to-energy ratio for portable applications and improved overall system efficiency.

These batteries are ideal for consumer electronics, electric vehicles, energy storage systems, and other high-performance applications requiring reliable power solutions.

Model:

P50 P73 P76 P84

Variant

Quantity:

Specifications

Item	P50	P73	P76	P84
Nominal Voltage(V)	3.64	3.65@0.33c	3.65@0.33c	3.58@0.33c
Nominal Capacity(Ah)	50	73@0.33c	76.3@0.33c	84@0.33c
Cell Weight(G)	741	941	971	970
Energy Density(wh/kg@1c)	245	280@0.33c	286@0.33c	315.6@0.33c
Working Voltage (V)	2.75-4.3	2.75-4.2	2.75-4.2	2.5-4.2
AC (mΩ@30%SOC)	<1mΩ	<1mΩ	<1mΩ	<1mΩ
Cycles (@80% SOH)	> 1500@SC/1C 4.3-3.0V	> 1500@SC/1C	> 1500@SC/1C	> 1500@SC/1C
Length (mm)	316	294	294	294
Width (mm)	103	104	105.5	104
Thickness (mm)	10.5	14.3	14.5	14
Charge Rate	1.0C (180S, 50%SOC)	1c	1c	1c
Continuous Discharge Rate	4.0C (180S, 50%SOC)	4c	1.5c	252A/3c
Peak Discharge Rate	8.5C (10s, 25°C, 50%SOC)	4.45C (10s, 25°C, 50%SOC)	3.71C (10s, 25°C, 50%SOC)	3.71C (10s, 25°C, 50%SOC)
Charge Temperature Scope (°C)	-20-55	-20-55	-30-55	-20-55
Discharge Temperature Scope (°C)	-30-55	-30-55	-30-60	-30-55
Application	Industrial Drones, eVTOL,355 VDA module	Industrial Drones	Industrial Drones	Industrial Drones

Instructions

Shipment

The cell shall be shipped in voltage range of 3.5~ 3.8V or in accordance with customers' requirement. The remaining capacity before charging shall be changed depending on the storage time and conditions

Package

100pcs cells in a small box, 2 small boxes in a big box

Storage

Conditions	Permissible time
-20℃~ 60℃, 60% RH Max	Less than 1 month
-20℃~45℃, 60% RH Max	Less than 3 months
-20℃~25℃, 60% RH Max	Less than 1 year
About long time storage:If the cellneeds to bestored for a long time, the cell’s storage voltage should be 3.5~ 3.8V. Also, it is recommended to charge the cellevery six months.

Warranty

The Warranty period of cell is made according to business contract. However, even though the problem occurs within this period, BAK won’t replace a new cell for free as long as the problem is not due to the failure of manufacturing process or is due to customers’ abuse or misuse.

To prevent the possibility of the cell from leaking, heating, explosion, please observe the following precautions: (It should be indicated especially in manual or instruction for users.)

1.Do not use and leave the cell near a heat source such as fire or heater.
2.Do not use or leave the cell under the blazing sun (or in heated car by sunshine).
3.Do not use or leave the cell at very high temperature conditions (e.g., strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or catch fire or its performance will be degenerate and its service life will be decreased.
4.Do not short circuit, over-charge or over-discharge the cell.
5.Don’t immerse the cell in water and seawater. Please put it in cool and dry environment if no using.
6.Don’t reverse the positive and negative terminals
7.Do not disassemble or modify the cell.
8.Do not transport or store the cell together with metal objects such as necklaces, hairpins, coins, etc.
9.Make sure the cell is not with conspicuous damage or deformation.
10.Don’t connect the cell to an electrical outlet directly.
11.If the cell leaks and the electrolyte splashes into the eyes, rinse the eyes with clean running water immediately for at least 15 minutes, and go to hospital for treatment if necessary.
12.Mixed use of cells of different types is not allowed.
13.Keep the cell away from babies.
14.Do not directly solder the cell and pierce the cell with a nail or other sharp object
15.Do not strike, throw or trample the cell.
16.Use the cell charger specifically for that purpose when charging.
17.Please separate cells of different electrochemical systems from one another when disposing of secondary cells.
18.Clean the terminals with a dry cloth before use if the cell terminals are dirty. Otherwise power failure or charge failure may occur due to the poor connection with the instrument.
19.Cells should be removed from the device or charger immediately and not used again if they are over heat, give off odor, discolor or deform, or appear abnormally in any way during use, charging and storage.
20.The cell replacement shall be done only by either cell supplier or device supplier instead of the user.
21.Please tape the terminals to insulate cells before discarding them in case of fire and explosion.
22.Do not use cells in strong electrostatic and magnetic occasions, otherwise, it can cause safety problems easily.
23.Use of damaged cells is not permitted.
24.Make sure package designing will not cause cell damages.
25.Cell packing should be conducted strictly according to level range, any misuse of different levels should not be permitted.
26.Disassembling cells from pack or module is not permitted unless under the guidance of professional technicians.

Customization

Let’s Start Design Your Battery!

WE ARE READY FOR YOUR NEXT PROJECT

Please try to answer our following questions,

1 What kind of product will the battery used for? please send us product pictures and specifications.
2 What’s the device voltage and current and if possible peak current
3 How long would you like the device to be used before next charging
4 Any special shape requirement? Triangle? Ultra thin? Ultra small? Arc shape? Curved?
5 What’s your application work condition? Temperature range, and humidity, outdoor or indoor, moving or stay still?
6 What’s the quantity you need?

Office Address: Longhua District, Shenzhen City, Guangdong Province518109

Factory Address: DongGuang City,China,523657

Phone Number: +(86)15821954176
Email Address: sales@megamedo.com

Item	P50	P73	P76	P84
Nominal Voltage(V)	3.64	3.65@0.33c	3.65@0.33c	3.58@0.33c
Nominal Capacity(Ah)	50	73@0.33c	76.3@0.33c	84@0.33c
Cell Weight(G)	741	941	971	970
Energy Density(wh/kg@1c)	245	280@0.33c	286@0.33c	315.6@0.33c
Working Voltage (V)	2.75-4.3	2.75-4.2	2.75-4.2	2.5-4.2
AC (mΩ@30%SOC)	<1mΩ	<1mΩ	<1mΩ	<1mΩ
Cycles (@80% SOH)	> 1500@SC/1C 4.3-3.0V	> 1500@SC/1C	> 1500@SC/1C	> 1500@SC/1C
Length (mm)	316	294	294	294
Width (mm)	103	104	105.5	104
Thickness (mm)	10.5	14.3	14.5	14
Charge Rate	1.0C (180S, 50%SOC)	1c	1c	1c
Continuous Discharge Rate	4.0C (180S, 50%SOC)	4c	1.5c	252A/3c
Peak Discharge Rate	8.5C (10s, 25°C, 50%SOC)	4.45C (10s, 25°C, 50%SOC)	3.71C (10s, 25°C, 50%SOC)	3.71C (10s, 25°C, 50%SOC)
Charge Temperature Scope (°C)	-20-55	-20-55	-30-55	-20-55
Discharge Temperature Scope (°C)	-30-55	-30-55	-30-60	-30-55
Application	Industrial Drones, eVTOL,355 VDA module	Industrial Drones	Industrial Drones	Industrial Drones
